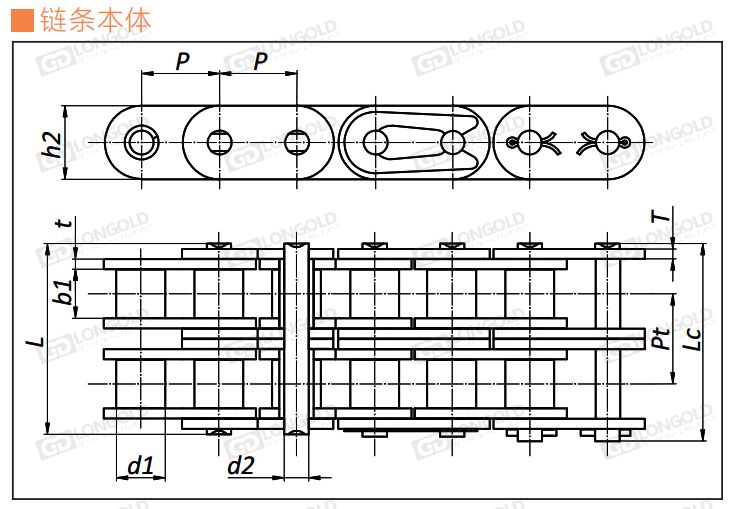

隆德鏈號

節(jié)距

滾子直徑

內節(jié)內寬

銷軸直徑

銷軸長度

內鏈板高度

鏈板厚度

排距

單位

鏈節(jié)數(shù)

斷破載荷

參考重量

P

d1max

b1min

d2max

Lmax

Lcmax

h2max

t/Tmax

Ft

Q

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

LDC06B-SS-2

9.525

6.35

5.72

3.28

23.40

24.20

8.20

1.30

10.24

320

請咨詢

請咨詢

LDC08B-SS-2

12.70

8.51

7.75

4.45

31.00

32.20

11.80

1.60

13.92

240

LDC10B-SS-2

15.875

10.16

9.65

5.08

36.10

37.50

14.70

1.70

16.59

192

LDC12B-SS-2

19.05

12.07

11.68

5.72

42.00

43.60

16.00

1.85

19.46

160

LDC16B-SS-2

25.40

15.88

17.02

8.28

68.00

71.00

21.00

4.15/3.10

31.88

120

LDC20B-SS-2

31.75

19.05

19.56

10.19

77.80

81.50

26.40

4.50/3.50

36.45

96

LDC24B-SS-2

38.10

25.40

25.4

14.63

101.70

106.20

33.20

6.00/4.80

48.36

80

LDC28B-SS-2

44.45

27.94

30.99

15.90

124.60

129.10

36.70

7.50/6.00

59.56

68

LDC32B-SS-2

50.80

29.21

30.99

17.81

124.60

129.60

42.00

7.00/6.00

58.55

60
