隆德鏈號

ANSI鏈號

節距

滾子直徑

內節內寬

銷軸直徑

銷軸長度

內鏈板高度

鏈板厚度

排距

其他技術參數

PDF圖紙

DXF圖紙

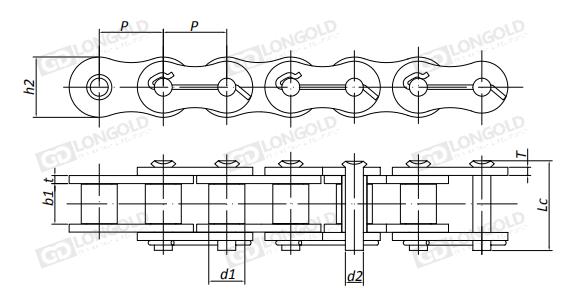

P

d1

b1

d2

Lc

h2

T

Pt

mm

itch

max

min

max

max

max

max

mm

mm

mm

mm

mm

mm

mm

LD80S-1

80-1

25.40

1

15.88

15.75

7.92

37.55

24.1

3.25

-

請咨詢

請咨詢

請咨詢

LD100S-1

100-1

31.75

1 1/4

19.05

18.90

9.53

44.30

30.0

4.00

-

LD120S-1

120-1

38.10

1 1/2

22.23

25.22

11.10

54.40

36.2

4.80

-

LD140S-1

140-1

44.45

1 3/4

25.40

25.22

12.70

59.00

42.2

5.60

-

LD160S-1

160-1

50.80

2

28.58

31.55

14.27

69.60

48.2

6.40

-

LD180S-1

180-1

57.15

2 1/4

35.71

35.48

17.46

78.60

54.3

7.20

-

LD200S-1

200-1

63.50

2 1/2

39.68

37.85

19.85

87.20

60.3

8.00

-
