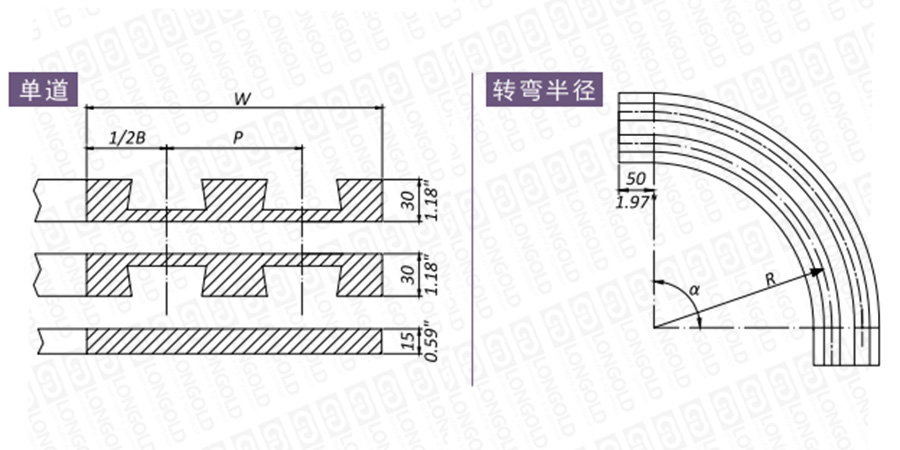

鏈條系列

鏈片寬度

轉彎半徑

軌道數目

總寬度

勾腳型轉彎軌道型號

PDF圖紙

DXF圖紙

R

W

轉彎角度α

mm

inch

mm

inch

15°

30°

45°

60°

75°

90°

882

4 1/2"

（114.3mm）

610

24.016

1

130

5.118

B82KG1C/1F00

B82KG1C/1E00

B82KG1C/1C00

B82KG1C/1B00

B82KG1C/1L00

B82KG1C/1000

請咨詢

請咨詢

800

31.496

1

130

5.118

B82KG1T/1F00

B82KG1T/1E00

B82KG1T/1C00

B82KG1T/1B00

B82KG1T/1L00

B82KG1T/1000

1000

39.370

1

130

5.118

B82KG1G/1F00

B82KG1G/1E00

B82KG1G/1C00

B82KG1G/1B00

B82KG1G/1L00

B82KG1G/1000

7 1/2"

（190.5）

610

24.016

1

200

7.874

B82KL1C/1F00

B82KL1C/1E00

B82KL1C/1C00

B82KL1C/1B00

B82KL1C/1L00

B82KL1C/1000

800

31.496

1

200

7.874

B82KL1T/1F00

B82KL1T/1E00

B82KL1T/1C00

B82KL1T/1B00

B82KL1T/1L00

B82KL1T/1000

1000

39.370

1

200

7.874

B82KL1G/1F00

B82KL1G/1E00

B82KL1G/1C00

B82KL1G/1B00

B82KL1G/1L00

B82KL1G/1000

10"

（254mm）

610

24.016

1

270

10.630

B82KM1C/1F00

B82KM1C/1E00

B82KM1C/1C00

B82KM1C/1B00

B82KM1C/1L00

B82KM1C/1000

800

31.496

1

270

10.630

B82KM1T/1F00

B82KM1T/1E00

B82KM1T/1C00

B82KM1T/1B00

B82KM1T/1L00

B82KM1T/1000

1000

39.370

1

270

10.630

B82KM1G/1F00

B82KM1G/1E00

B82KM1G/1C00

B82KM1G/1B00

B82KM1G/1L00

B82KM1G/1000

12"

（304.8）

610

24.016

1

320

12.598

B82KN1C/1F00

B82KN1C/1E00

B82KN1C/1C00

B82KN1C/1B00

B82KN1C/1L00

B82KN1C/1000

800

31.496

1

320

12.598

B82KN1T/1F00

B82KN1T/1E00

B82KN1T/1C00

B82KN1T/1B00

B82KN1T/1L00

B82KN1T/1000

1000

39.370

1

320

12.598

B82KN1G/1F00

B82KN1G/1E00

B82KN1G/1C00

B82KN1G/1B00

B82KN1G/1L00

B82KN1G/1000

軌道材質

材質特性

適用鏈條

應用

頂部材質

型號表示

超高分子聚乙烯(約7百萬gr/mole)，良好的耐磨性和低摩擦系數

金屬頂板鏈，塑料頂板鏈

干燥或潤滑條件下，理想的低/中速應用。

UHMWPE/自潤滑/充油聚酰胺

如上表所示

SUPREME-L

超高分子聚乙烯(約7-9百萬gr/mole)，出眾的耐磨性，結合高級潤滑油，確保優異的滑動性能

金屬頂板鏈，塑料頂板鏈

適用于干燥或減少潤滑條件下的中/高速的應用。

用"B82D"替換"B82"

SUPREME-S

特殊高級充油聚酰胺，絕佳的耐磨性與極高的PV限值。僅用于干摩擦運行。

塑料頂板鏈

適用于干燥條件下的高速應用。

用"B82P"替換"B82"
